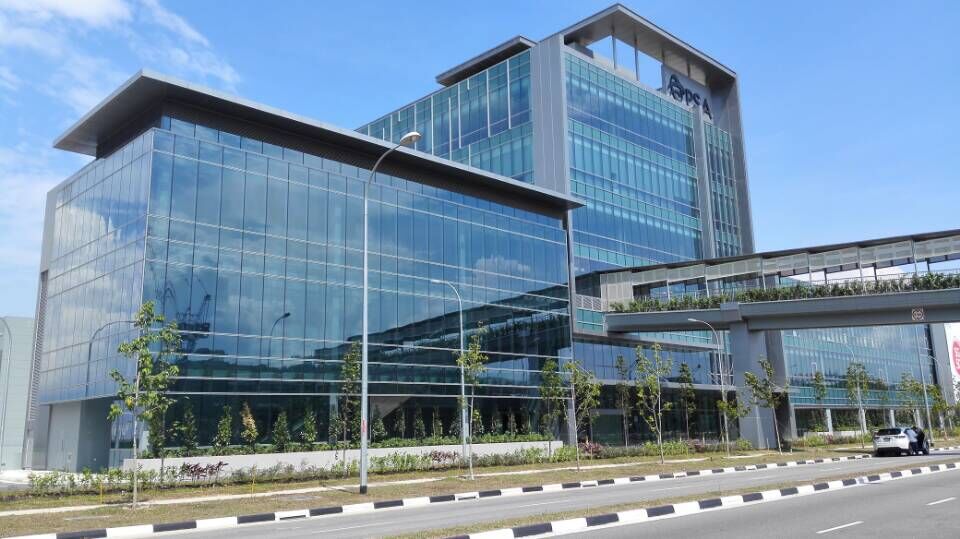

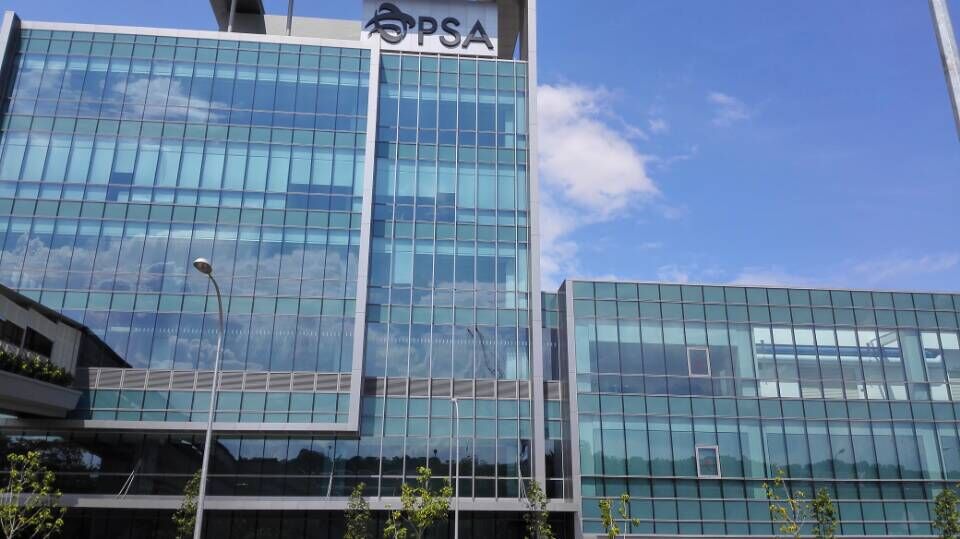

Singapore PSA Low-e Insulated Laminated Glass
Glass Type : Low-e Glass
Glass Structure : 5mm+9A+5mm,6mm+12A+6mm,8mm+12A+8mm,etc
Transmittance: 10%-80%
Reflectance: 7%-90%
U-Value: 1.00-6.00W/m2.K
Color: blue,grey,green,clear,ocean blue,gold,yellow,etc
Certificate: ISO9001-2008 Certificate,CE,CCC
Band: YUANDA GLASS
Warranty: 20 years
Low E Glass is an innovative coated glass
that prevents heat from escaping during the winter and reduces the
amount of the heat that enters a building in the summer.It is used
widely in residential ,commercial and industrial applications. Similar
to solar reflective glass , low-emmisivity glass (commonly known as low-e glass.) relies on special coating to achieve its high performancein principle.Low-E Glass is able to selectively reflect the invisible long-wave infrared or heat while letting the visible light in.The low-e coating allows for exceptionally high visible light transmission up to 70% as compared to 79% in clear glass.The use of low-e glass can substantially reduce the heat gain within a building and hence its energy consumption for air conditioning.
Features：
1. Approaches the natural color of glass
2. Highly transparent to visible light(wavelength 380mm-780mm); will not
cause significant glare problems due to high reflectance of visible
light.
3. Allows most sunlight in the visible range to enter without altering
its natural color. Provides excellent natural illumination and saves
energy by reducing the need for artificial lighting.
4. Relatively high reflectance of infrared radiation (wavelength
780mm-3000mm), In particular, reflects nearly all long-wave infrared
(wavelength greater than3000mm). Blocks the entrance of large amounts of
heat, and leaves interior comfortably cool in the summer and warm in
the winter.
